HEAVYSTAR PMS-100UWBDS/INJ

Product Specifications
Download
Product Catalog

Product No.	PMS-100UWBDS/INJ
Product Code	M5053
Category	For Heavy Duty
Stock	in stock
Swivel Caster/Fixed Caster	Swivel Caster

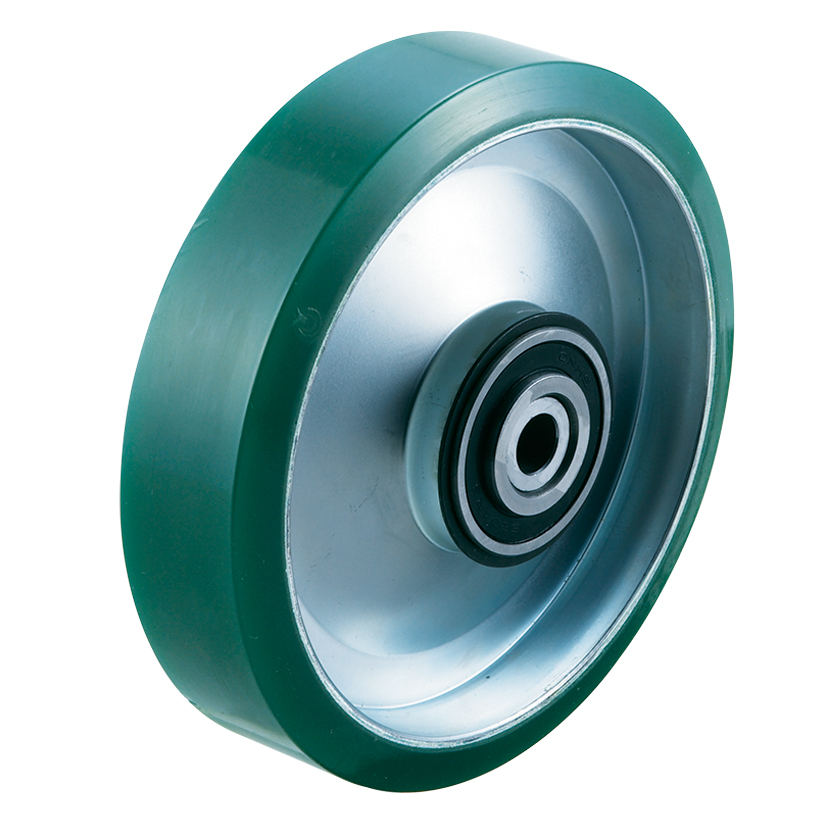

Wheel Type	UWB
Product Number of Wheel	PM-100UWB/INJ
Type of Bracket	PMS-DS Type
Material of Metal Fittings	Steel Plain
Material of mounting plate	Steel Plain
Color of Metal Fittings	Silver
Color of mounting plate	Silver
Body Coating	BZP(Brilliant Zinc Plating)
Body Bearing	Double Bearing
Stopper	Single Stopper
Material of Wheel	PU(including B)
Material of Foil	Steel
Color of Wheel	Green
Foil Bearing	Flanged Radial Bearing
Wheel diameter(D[mm])？	Φ100
Wheel Width(W[mm])？	32
Boss Width[mm]？	43
Wheel hole diameter[mm]？	12
Mounting height(H[mm])？	144
Mounting Method	Plate Type
Mounting base(A×B[mm])？	95×95
Mounting dimensions(X×Y[mm])？	74×74(67×67)
Hole Diameter(P[mm])？	11
Eccentricity(E[mm])？	32
Turning Radius(R[mm])？	86
Allowance Load(daN／kgf)^※？	180/183.6
Wheel Weight[g]	1232
Quantity per Case	20
Usage	Hand carrier

*Allowance load of one caster
