LOCKSTAR AF-75

Product Specifications
Download
Product Catalog

Product No.	AF-75
Product Code	2Z053
Category	Leveling
JAN Code	4580322260307
Stock	in stock
Swivel Caster/Fixed Caster	Swivel Caster
Wheel Type	MC
Product Number of Wheel	AF-75MC
Type of Bracket	AF Type
Material of Metal Fittings	Steel Plain
Material of mounting plate	Steel Plain
Color of Metal Fittings	Silver
Color of mounting plate	Silver
Body Coating	BZP(Brilliant Zinc Plating)
Body Bearing	Double Bearing
Stopper	Without

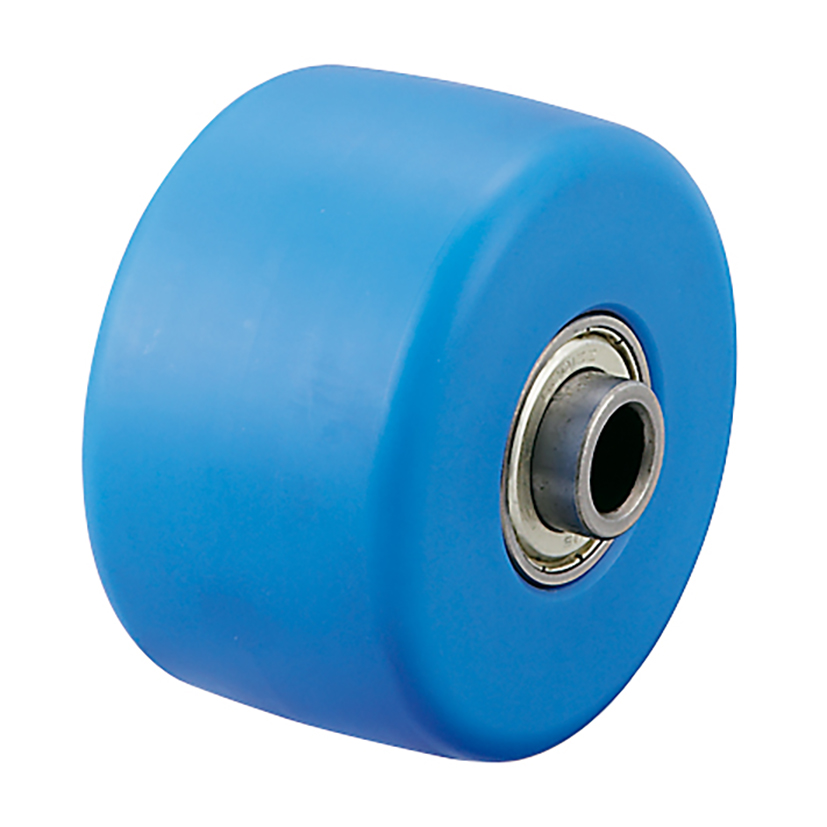

Material of Wheel	Monomer Cast Nylon(including B)
Material of Foil	Monomer Cast Nylon
Color of Wheel	Blue
Foil Bearing	Commercial bearing
Wheel diameter(D[mm])？	Φ75
Wheel Width(W[mm])？	45
Boss Width[mm]？	56
Wheel hole diameter[mm]？	12
Mounting height(H[mm])？	120
Mounting Method	Plate Type

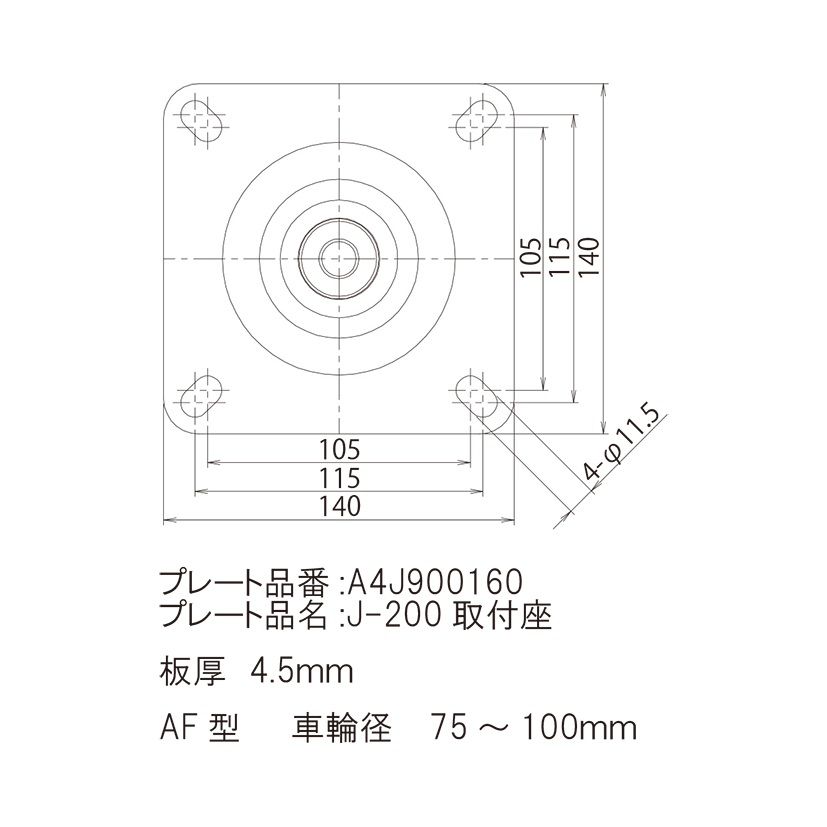

Mounting base(A×B[mm])？	140×140
Mounting dimensions(X×Y[mm])？	115×115(105×105)
Hole Diameter(P[mm])？	11.5
Eccentricity(E[mm])？	56
Turning Radius(R[mm])？	95
Allowance Load(daN／kgf)^※？	300/306
Wheel Weight[g]	2520
Others1	Equipped with adjuster feet
Others2	Adjuster diameter(D1［mm］) 40 Adjust amount(H1/H2［mm］) 15/15
Quantity per Case	4
Usage	Machinery and equipment

*Allowance load of one caster
