HEAVYSTAR GUJ-75

Product Specifications
Download
Product Catalog

Product No.	GUJ-75
Product Code	11013
Category	For Heavy Duty
JAN Code	4562182576996
Stock	job order production
Swivel Caster/Fixed Caster	Swivel Caster
Wheel Type	GU
Product Number of Wheel	GU-75
Type of Bracket	J Type
Material of Metal Fittings	Steel Plain
Material of mounting plate	Steel Plain
Color of Metal Fittings	Silver
Color of mounting plate	Silver
Body Coating	BZP(Brilliant Zinc Plating)
Body Bearing	Double Bearing
Stopper	Without
Material of Wheel	PU(including B)
Material of Foil	Nylon
Color of Wheel	Grey
Foil Bearing	Radial Bearing
Wheel diameter(D[mm])？	Φ75
Wheel Width(W[mm])？	32
Boss Width[mm]？	36
Wheel hole diameter[mm]？	10
Mounting height(H[mm])？	103
Mounting Method	Plate Type

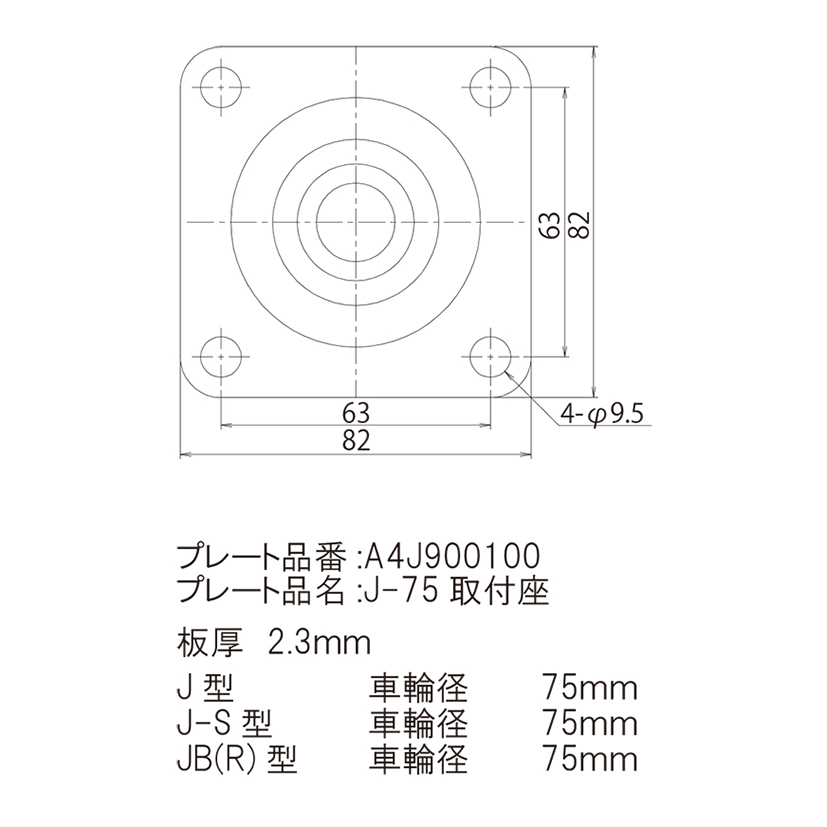

Mounting base(A×B[mm])？	82×82
Mounting dimensions(X×Y[mm])？	63×63
Hole Diameter(P[mm])？	9.5
Eccentricity(E[mm])？	26
Turning Radius(R[mm])？	64
Allowance Load(daN／kgf)^※？	100/102
Wheel Weight[g]	506
Quantity per Case	20
Usage	Hand carrier, Machinery and equipment

*Allowance load of one caster
