SHORTSTAR UHG-100MC2
- Product Specifications
- Download
- Product Catalog
| Product No. | UHG-100MC2 |
|---|---|
| Product Code | P4402 |
| Category | For Low Profile Heavy Duty |
| Stock | in stock |
| Swivel Caster/Fixed Caster | Swivel Caster |

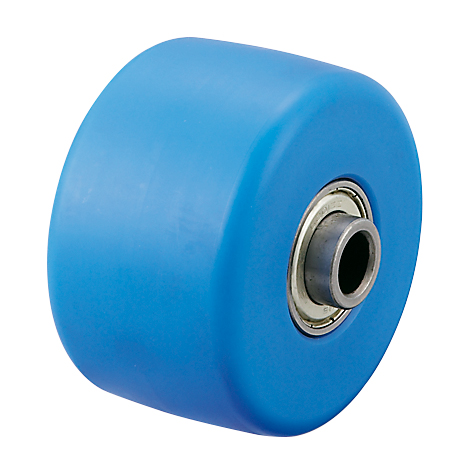

| Wheel Type | MC2 |
| Product Number of Wheel | UH-100MC2 |
| Type of Bracket | UHG Type |
| Material of Metal Fittings | Steel Plain |
| Material of mounting plate | Steel Plain |
| Color of Metal Fittings | Silver |
| Color of mounting plate | Silver |
| Body Coating | BZP(Brilliant Zinc Plating) |
| Body Bearing | Double Bearing |
| Stopper | Without |
| Material of Wheel | Monomer Cast Nylon(including B) |
| Material of Foil | Monomer Cast Nylon |
| Color of Wheel | Blue |
| Foil Bearing | Radial Bearing |
Wheel diameter(D[mm])？
 |
Φ100 |
Wheel Width(W[mm])？
 |
48 |
Boss Width[mm]？
 |
51.5 |
Wheel hole diameter[mm]？
 |
16 |
Mounting height(H[mm])？
 |
140 |
| Mounting Method | Plate Type |

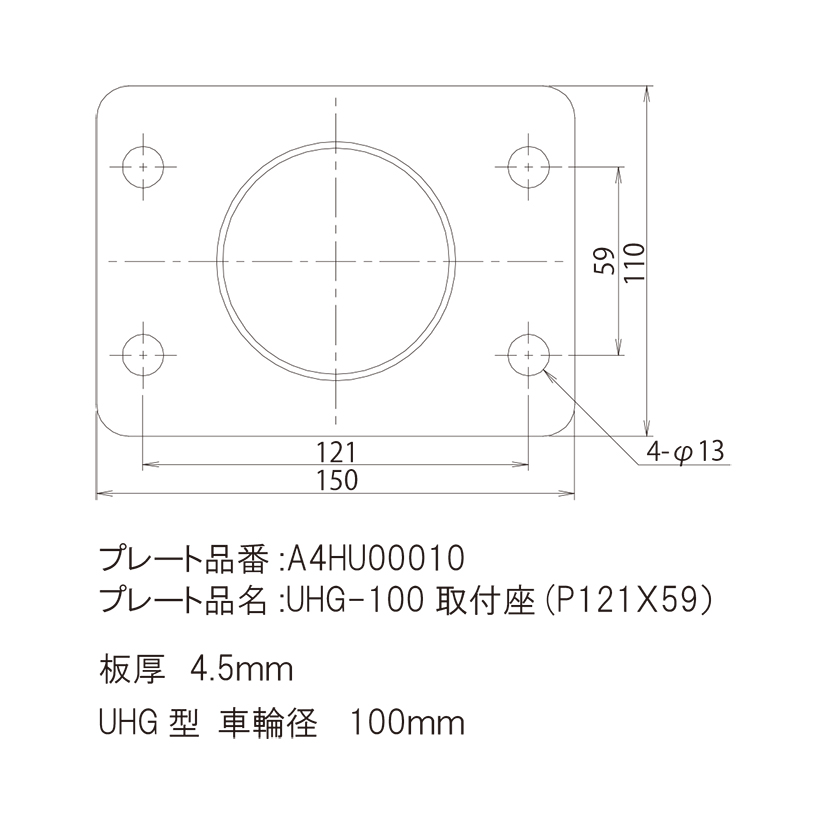

Mounting base(A×B[mm])？
 |
150×110 |
Mounting dimensions(X×Y[mm])？
 |
121×59 |
Hole Diameter(P[mm])？
 |
13 |
Eccentricity(E[mm])？
 |
20 |
Turning Radius(R[mm])？
 |
72 |
Allowance Load(daN／kgf)※？
 |
800/816 |
| Quantity per Case | 8 |
| Usage | Machinery and equipment |
*Allowance load of one caster
Product catalog
Digital Catalog
Flyer
Other Resources
-
*The Picture is a typical product image.
You can download by click.
UHG-100MC2
- Material of Wheel
- Usage
- Mounting Method
- Sub Picture 1
- Brand Logo
External dimensions
Wheel SpecificationIcon Description
Swivel Caster
Double Bearing
Plate Type
