LIGHTSTAR E-75NS

Product Specifications
Download
Product Catalog

Product No.	E-75NS
Product Code	25117300
Category	For Light Duty
JAN Code	4562182574824
Stock	in stock
Swivel Caster/Fixed Caster	Swivel Caster
Wheel Type	N
Product Number of Wheel	L-75N
Type of Bracket	E-S Type
Material of Metal Fittings	Steel Plain
Material of mounting plate	Steel Plain
Color of Metal Fittings	Silver
Color of mounting plate	Silver
Body Coating	CP(Chromium Plating)
Body Bearing	Double Bearing
Stopper	Single Stopper
Material of Wheel	Nylon
Material of Foil	Nylon
Color of Wheel	White

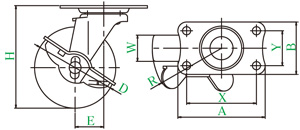

Wheel diameter(D[mm])？	Φ75
Wheel Width(W[mm])？	21
Boss Width[mm]？	24
Wheel hole diameter[mm]？	6.2
Mounting height(H[mm])？	92
Mounting Method	Plate Type

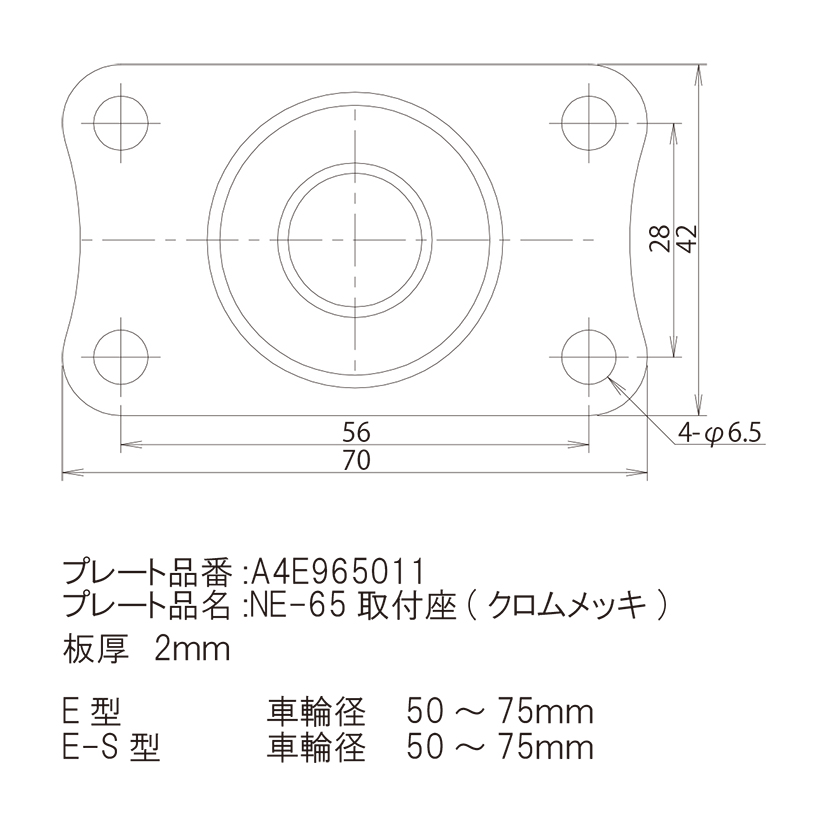

Mounting base(A×B[mm])？	70×42
Mounting dimensions(X×Y[mm])？	56×28
Hole Diameter(P[mm])？	6.5
Eccentricity(E[mm])？	27
Turning Radius(R[mm])？	65
Allowance Load(daN／kgf)^※？	50/51
Wheel Weight[g]	279
Quantity per Case	50
Usage	Hand carrier

*Allowance load of one caster
