LEADSTAR SKY-S100SUE-3
- Product Specifications
- Download
- Product Catalog
| Product No. | SKY-S100SUE-3 |
|---|---|
| Product Code | 57100503 |
| Category | Shock Absorbing |
| JAN Code | 4589462659088 |
| Stock | job order production |
| Swivel Caster/Fixed Caster | Swivel Caster |
| Wheel Type | SUE |
| Product Number of Wheel | S-100SUE |
| Type of Bracket | SKY-S Type |
| Material of Metal Fittings | Stainless |
| Material of mounting plate | Stainless |
| Color of Metal Fittings | Silver |
| Color of mounting plate | Silver |
| Body Bearing | Radial Bearing |
| Stopper | Without |
| Material of Wheel | Antistatic PU(including B) |
| Material of Foil | Nylon |
| Color of Wheel | Yellow |
| Foil Bearing | Radial Bearing |
Wheel diameter(D[mm])？
 |
Φ100 |
Wheel Width(W[mm])？
 |
28 |
Boss Width[mm]？
 |
31 |
Wheel hole diameter[mm]？
 |
8.1 |
Mounting height(H[mm])？
 |
171 |
| Mounting Method | Plate Type |
Mounting base(A×B[mm])？
 |
100×58 |
Mounting dimensions(X×Y[mm])？
 |
82×40 |
Hole Diameter(P[mm])？
 |
8.8 |
Eccentricity(E[mm])？
 |
34 |
Turning Radius(R[mm])？
 |
84 |
Allowance Load(daN／kgf)※？
 |
30/30.6 |
| Wheel Weight[g] | 951 |
| Others1 | Equipped with shock absorbing damper |
| Others2 | Depending on loading load change to Mounting height：158mm eccentricity：50mm Turning radius：100mm |
| Quantity per Case | 12 |
| Usage | Hand carrier, For clean room |
*Allowance load of one caster
Product catalog
Digital Catalog
Flyer
Other Resources
-
*The Picture is a typical product image.
You can download by click.
SKY-S100SUE-3
-
You can download by click.
Antistatic PU(including B)
-
Hand carrier, For clean room
-
Plate Type
- Material of Wheel
- Usage
- Mounting Method
- Sub Picture 1
- Brand Logo

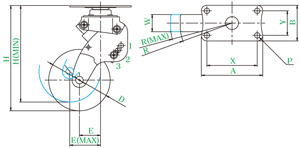

External dimensions
