LEADSTAR SHSKY-S125NRBDS-30
- Product Specifications
- Download
- Product Catalog
| Product No. | SHSKY-S125NRBDS-30 |
|---|---|
| Product Code | 56112100 |
| Category | Shock Absorbing |
| JAN Code | 4580322261007 |
| Stock | job order production |
| Swivel Caster/Fixed Caster | Swivel Caster |
| Wheel Type | NRB |
| Product Number of Wheel | S-125NRB |
| Type of Bracket | SHSKY Type |
| Material of Metal Fittings | Steel Plain |
| Material of mounting plate | Steel Plain |
| Color of Metal Fittings | Silver |
| Color of mounting plate | Silver |
| Body Coating | BZP(Brilliant Zinc Plating) |
| Body Bearing | Double Bearing |
| Stopper | Single Stopper |
| Material of Wheel | Rubber(including B) |
| Material of Foil | Nylon |
| Color of Wheel | Black |
| Foil Bearing | Radial Bearing |
Wheel diameter(D[mm])？
 |
Φ125 |
Wheel Width(W[mm])？
 |
30 |
Boss Width[mm]？
 |
44 |
Wheel hole diameter[mm]？
 |
10 |
Mounting height(H[mm])？
 |
193 |
| Mounting Method | Plate Type |
Mounting base(A×B[mm])？
 |
102×102 |
Mounting dimensions(X×Y[mm])？
 |
80×80(75×75) |
Hole Diameter(P[mm])？
 |
11 |
Eccentricity(E[mm])？
 |
35.5 |
Turning Radius(R[mm])？
 |
98 |
Allowance Load(daN／kgf)※？
 |
30/30.6 |
| Wheel Weight[g] | 1733 |
| Others1 | Equipped with shock absorbing damper |
| Others2 | Depending on loading load change to Mounting height：177mm eccentricity：44.5mm Turning radius：107mm |
| Quantity per Case | 10 |
| Usage | Hand carrier |
*Allowance load of one caster
Product catalog
Digital Catalog
Flyer
Other Resources
-
*The Picture is a typical product image.
You can download by click.
SHSKY-S125NRBDS-30
-
You can download by click.
Rubber(including B)
-
Hand carrier
-
Plate Type
- Material of Wheel
- Usage
- Mounting Method
- Sub Picture 1
- Brand Logo

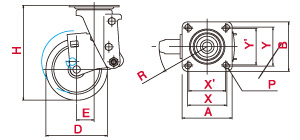

External dimensions
