LOCKSTAR SPLG-50BN,AJ
- Product Specifications
- Download
- Product Catalog
| Product No. | SPLG-50BN,AJ |
|---|---|
| Product Code | RR151 |
| Category | Leveling |
| JAN Code | 4580322260277 |
| Stock | in stock |
| Swivel Caster/Fixed Caster | Swivel Caster |
| Wheel Type | BN |
| Product Number of Wheel | S-50BN |
| Type of Bracket | SPLG Type |
| Material of Metal Fittings | Resin |
| Material of mounting plate | Steel Plain |
| Color of Metal Fittings | Black |
| Color of mounting plate | Silver |
| Body Bearing | Double Bearing |
| Stopper | Without |
| Material of Wheel | Black Nylon |
| Material of Foil | Nylon(Black) |
| Color of Wheel | Black |
Wheel diameter(D[mm])？
 |
Φ50 |
Wheel Width(W[mm])？
 |
28 |
Boss Width[mm]？
 |
30 |
Wheel hole diameter[mm]？
 |
8.2 |
Mounting height(H[mm])？
 |
75 |
| Mounting Method | Plate Type |

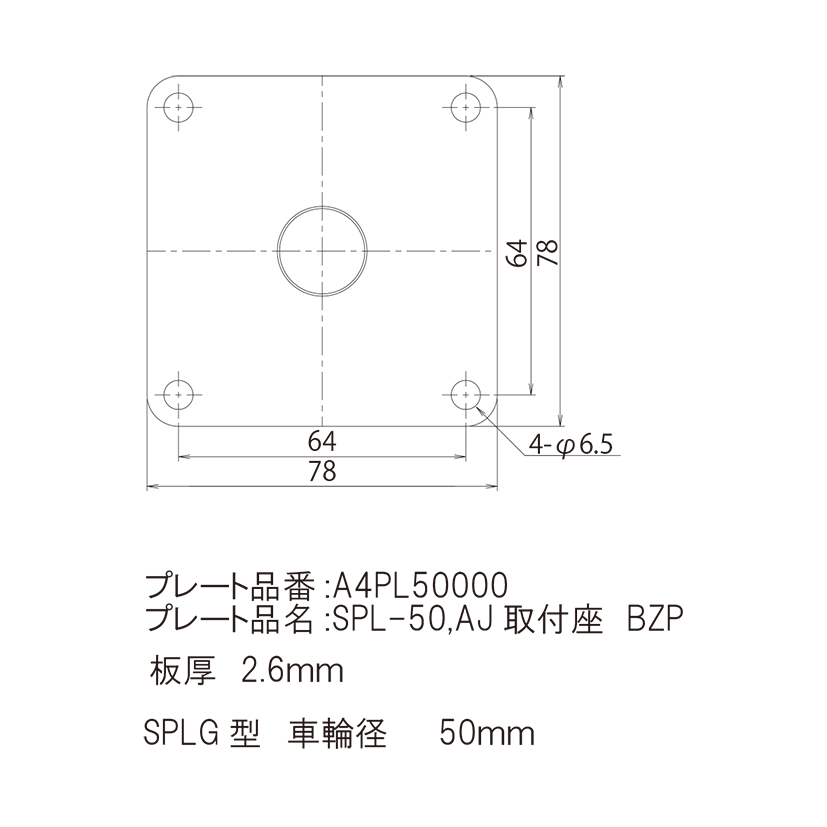

Mounting base(A×B[mm])？
 |
78×78 |
Mounting dimensions(X×Y[mm])？
 |
64×64 |
Hole Diameter(P[mm])？
 |
6.5 |
Eccentricity(E[mm])？
 |
17 |
Turning Radius(R[mm])？
 |
50 |
Allowance Load(daN／kgf)※？
 |
60/61.2 |
| Wheel Weight[g] | 395 |
| Others1 | Equipped with adjuster feet |
| Others2 | Adjuster diameter(D1［mm］) 40 Adjust amount(H1/H2［mm］) 10/10 |
| Quantity per Case | 24 |
| Usage | Machinery and equipment |
*Allowance load of one caster
