LOCKSTAR BPT125RHGP2SF-DD1056
- Product Specifications
- Download
- Product Catalog
| Product No. | BPT125RHGP2SF-DD1056 |
|---|---|
| Product Code | 51102104 |
| Category | For Medium Duty |
| JAN Code | 4589856902431 |
| Stock | job order production |
| Swivel Caster/Fixed Caster | Swivel Caster |
| Wheel Type | RHGP |
| Product Number of Wheel | B-125RHＧP |
| Type of Bracket | BP Type |
| Material of Metal Fittings | Steel Plain |
| Material of mounting plate | PA6/GF |
| Color of Metal Fittings | Black finish |
| Color of mounting plate | Black finish |
| Body Coating | Black Trivalent Zinc Plating |
| Body Bearing | Radial Bearing |
| Stopper | Without |
| Material of Wheel | Grey Rubber(including B) |
| Material of Foil | Nylon |
| Color of Wheel | Grey |
| Foil Bearing | Radial Bearing |
Wheel diameter(D[mm])？
 |
Φ125 |
Wheel Width(W[mm])？
 |
34 |
Boss Width[mm]？
 |
38.4 |
Wheel hole diameter[mm]？
 |
12 |
Mounting height(H[mm])？
 |
177 |
| Mounting Method | Plate Type |
Mounting base(A×B[mm])？
 |
128×108 |
Mounting dimensions(X×Y[mm])？
 |
100×56（80×80） |
Hole Diameter(P[mm])？
 |
11 |
Eccentricity(E[mm])？
 |
45 |
Turning Radius(R[mm])？
 |
115 |
Allowance Load(daN／kgf)※？
 |
100/102 |
| Wheel Weight[g] | 2050 |
| Quantity per Case | 2 |
| Usage | Hand carrier |
*Allowance load of one caster
Product catalog
Digital Catalog
Flyer
PDF format
Other Resources
-
*The Picture is a typical product image.
You can download by click.
BPT125RHGP2SF-DD1056
- Material of Wheel
- Usage
- Mounting Method
- Sub Picture 1
- Logo

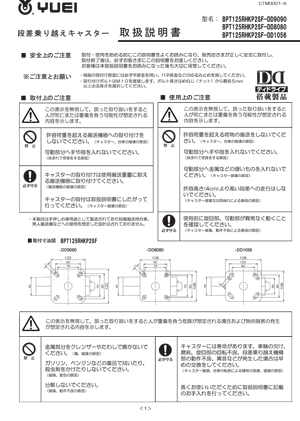

- Instruction Manual
- Brand Logo

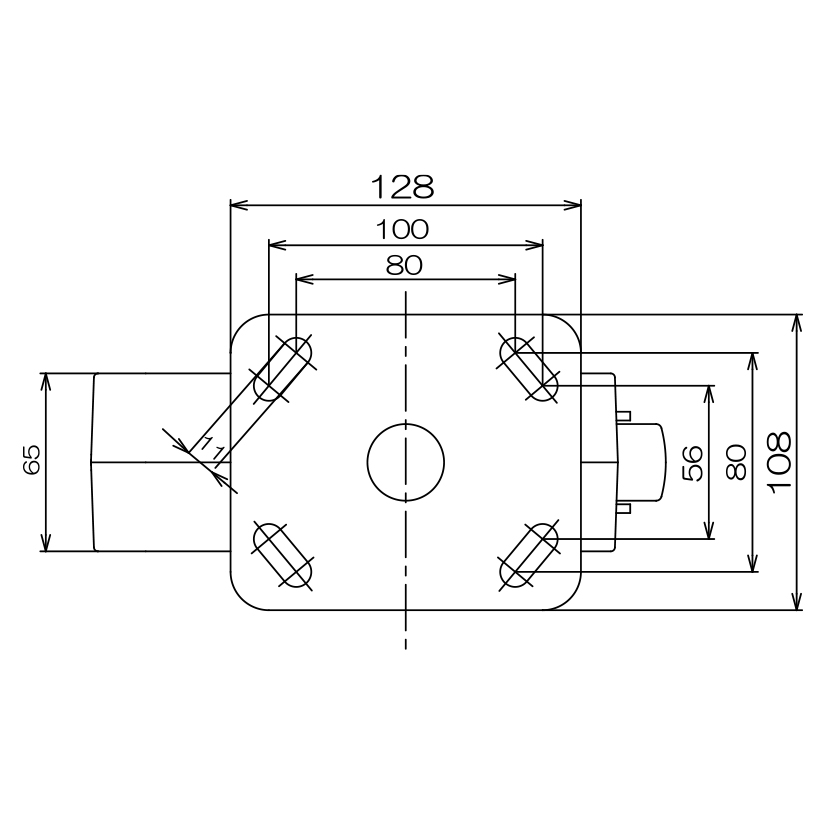

External dimensions
