HEAVYSTAR PMS-130WB-G
- Product Specifications
- Download
- Product Catalog
| Product No. | PMS-130WB-G |
|---|---|
| Product Code | M4155 |
| Category | For Heavy Duty |
| JAN Code | 4580322268013 |
| Stock | job order production |
| Swivel Caster/Fixed Caster | Swivel Caster |

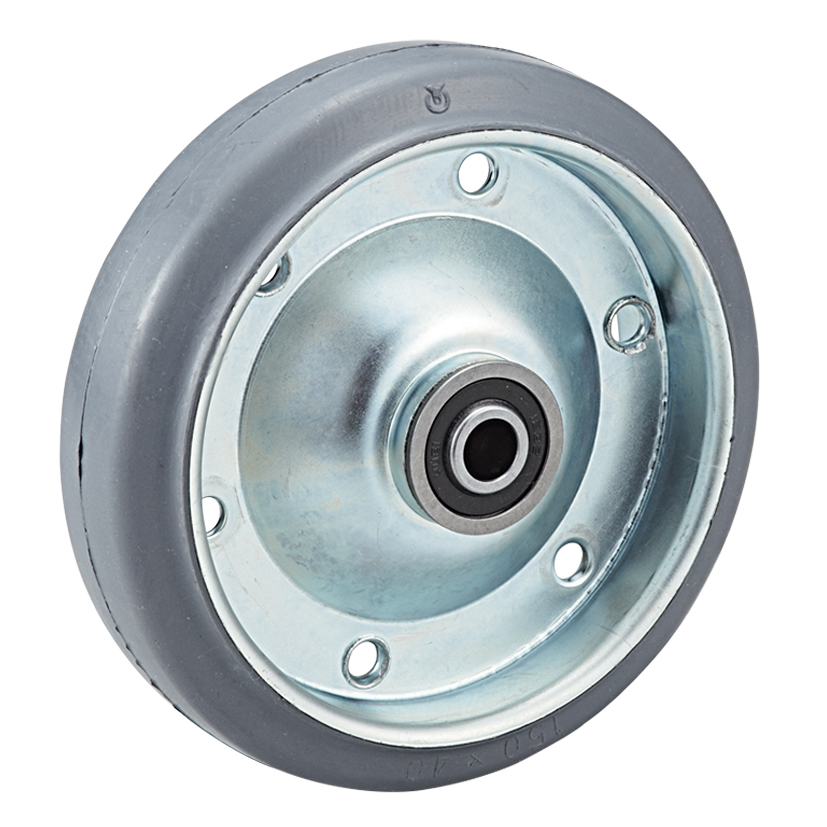

| Wheel Type | WB-G |
| Product Number of Wheel | PM-130WB-G |
| Type of Bracket | PMS Type |
| Material of Metal Fittings | Steel Plain |
| Material of mounting plate | Steel Plain |
| Color of Metal Fittings | Silver |
| Color of mounting plate | Silver |
| Body Coating | BZP(Brilliant Zinc Plating) |
| Body Bearing | Double Bearing |
| Stopper | Without |
| Material of Wheel | Grey Rubber(including B) |
| Material of Foil | Steel |
| Color of Wheel | Grey |
| Foil Bearing | Flanged Radial Bearing |
Wheel diameter(D[mm])？
 |
Φ130 |
Wheel Width(W[mm])？
 |
40 |
Boss Width[mm]？
 |
56 |
Wheel hole diameter[mm]？
 |
12 |
Mounting height(H[mm])？
 |
177 |
| Mounting Method | Plate Type |

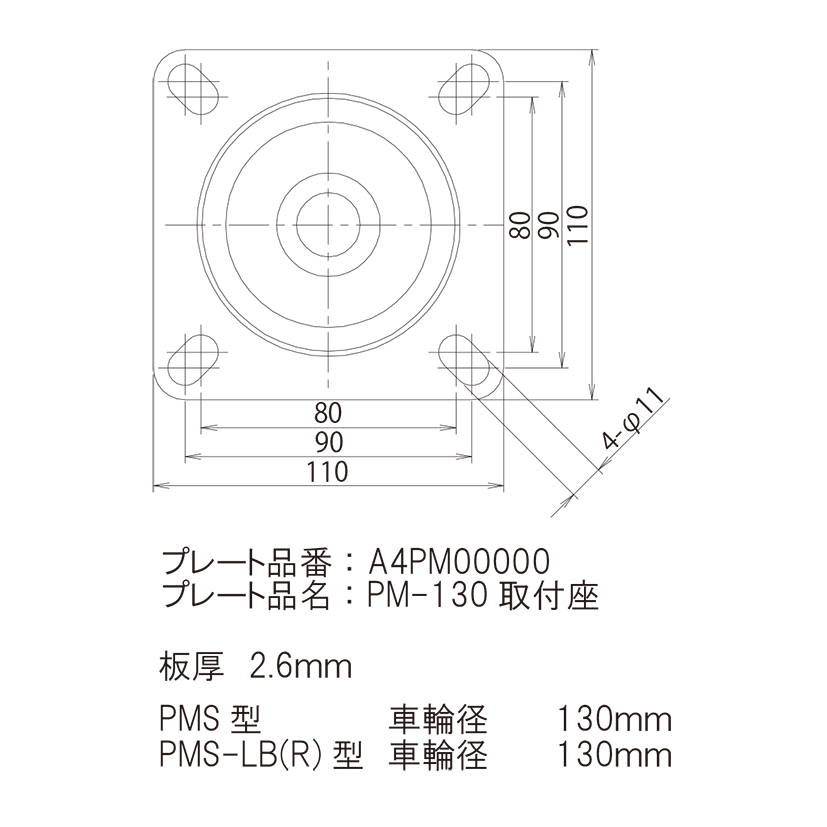

Mounting base(A×B[mm])？
 |
110×110 |
Mounting dimensions(X×Y[mm])？
 |
90×90(80×80) |
Hole Diameter(P[mm])？
 |
11 |
Eccentricity(E[mm])？
 |
40 |
Turning Radius(R[mm])？
 |
105 |
Allowance Load(daN／kgf)※？
 |
180/183.6 |
| Wheel Weight[g] | 1627 |
| Quantity per Case | 10 |
| Usage | Hand carrier |
*Allowance load of one caster
Product catalog
Digital Catalog
Flyer
PDF format
Other Resources
-
*The Picture is a typical product image.
You can download by click.
PMS-130WB-G
-
You can download by click.
Grey Rubber(including B)
-
Hand carrier
-
Plate Type
- Material of Wheel
- Usage
- Mounting Method
- Sub Picture 1
- Brand Logo

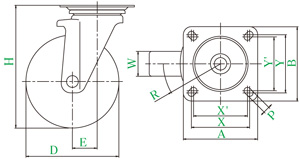

External dimensions
Wheel SpecificationIcon Description
Swivel Caster
Double Bearing
Plate Type
