STEP 1Select an application

STEP 2Calculate the allowable load of one piece of caster.

Self-weight of set equipmentkg

＋

The maximum loading capacitykg

4

×1.25

Allowable load of one piece of caster00(daN)

※It’s only applied to the case when using 4 pieces of casters. If there are more than 4 pieces of caster, please contact us.

SHORTSTAR HG-75GNBS

  • Product Specifications
  • Download
  • Product Catalog
Product No. HG-75GNBS
Product Code 35117310
Category For Low Profile Heavy Duty
JAN Code 4580322260383
Stock in stock
Swivel Caster/Fixed Caster Swivel Caster
Wheel Type GNB
Product Number of Wheel H-75GNB
Type of Bracket HG-S Type
Material of Metal Fittings Steel Plain
Material of mounting plate Steel Plain
Color of Metal Fittings Silver
Color of mounting plate Silver
Body Coating BZP(Brilliant Zinc Plating)
Body Bearing Double Bearing
Stopper Single Stopper
Material of Wheel Reinforced Nylon(including B)
Material of Foil Reinforced Nylon
Color of Wheel Black
Foil Bearing Radial Bearing
Wheel diameter(D[mm])？
Φ75
Wheel Width(W[mm])？
38
Boss Width[mm]？
42
Wheel hole diameter[mm]？
12
Mounting height(H[mm])？
106
Mounting Method Plate Type
Mounting base(A×B[mm])？
90×90
Mounting dimensions(X×Y[mm])？
71×71
Hole Diameter(P[mm])？
10.5
Eccentricity(E[mm])？
22
Turning Radius(R[mm])？
67
Allowance Load(daN／kgf)※？
320/326.4
Wheel Weight[g] 990
Others1 Low floor, heavy load
Quantity per Case 12
Usage Machinery and equipment

*Allowance load of one caster

Download Drawing

Registration as a member of our company is necessary.

If you are a registered member please login by click "Login".
If you are not a registered member, please click the "Registration" to go to the new member registration page.

Product catalog

  • Digital Catalog
  • PDF format

Flyer

Other Resources

  • *The Picture is a typical product image.
    You can download by click.

    Product Image

    HG-75GNBS

  • You can download by click.

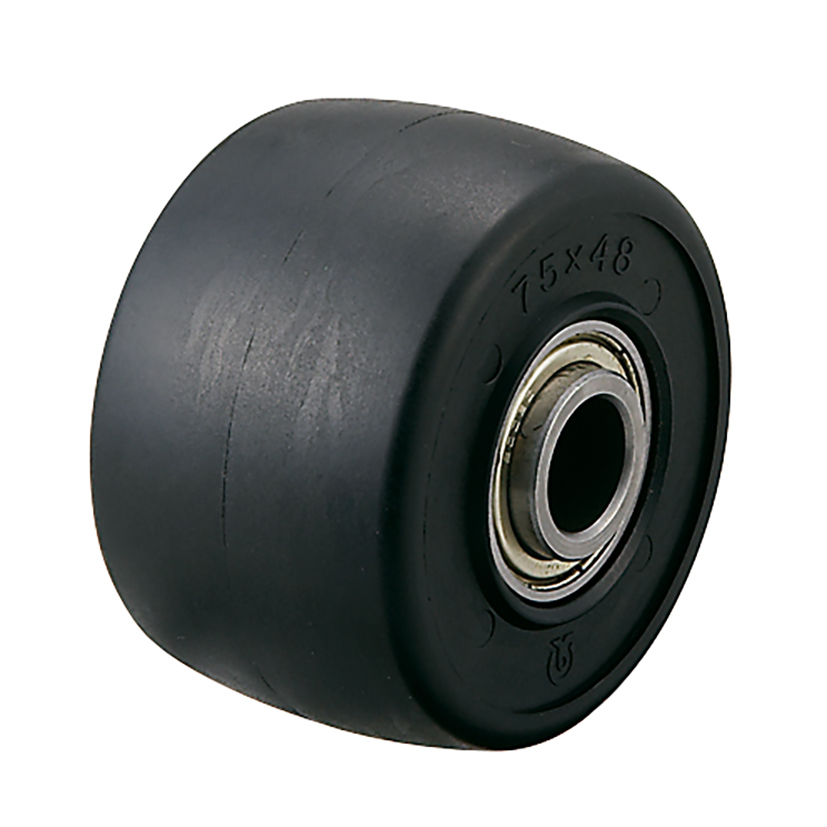

    Used Wheels

    Reinforced Nylon(including B)

  • Usage

    Machinery and equipment

  • Mounting Method

    Plate Type

  • Material of Wheel車輪
  • Usage使用例
  • Mounting Method取付方法
  • Sub Picture 1サブ画像1
  • Brand Logoブランドロゴ

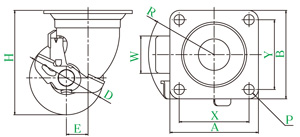

External dimensions

External dimensions

Wheel SpecificationIcon Description

  • Swivel CasterSwivel Caster
  • Double bearingDouble Bearing
  • Plate TypePlate Type
  • Single stopperSingle Stopper
