STAINLESTAR SUS-NK-150
- Product Specifications
- Download
- Product Catalog
| Product No. | SUS-NK-150 |
|---|---|
| Product Code | C3307 |
| Category | Stainless Steel |
| JAN Code | 4580322260925 |
| Stock | job order production |
| Swivel Caster/Fixed Caster | Fixed Caster |
| Wheel Type | N |
| Product Number of Wheel | SUS-N-150φ12（カバー付） |
| Type of Bracket | SUS-K Type |
| Material of Metal Fittings | Stainless |
| Material of mounting plate | Stainless |
| Color of Metal Fittings | Silver |
| Color of mounting plate | Silver |
| Stopper | Without |
| Material of Wheel | Nylon(including B) |
| Material of Foil | Nylon |
| Color of Wheel | White |
| Foil Bearing | Commercial bearing |
Wheel diameter(D[mm])？
 |
Φ150 |
Wheel Width(W[mm])？
 |
40 |
Boss Width[mm]？
 |
56 |
Wheel hole diameter[mm]？
 |
12 |
Mounting height(H[mm])？
 |
198 |
| Mounting Method | Plate Type |

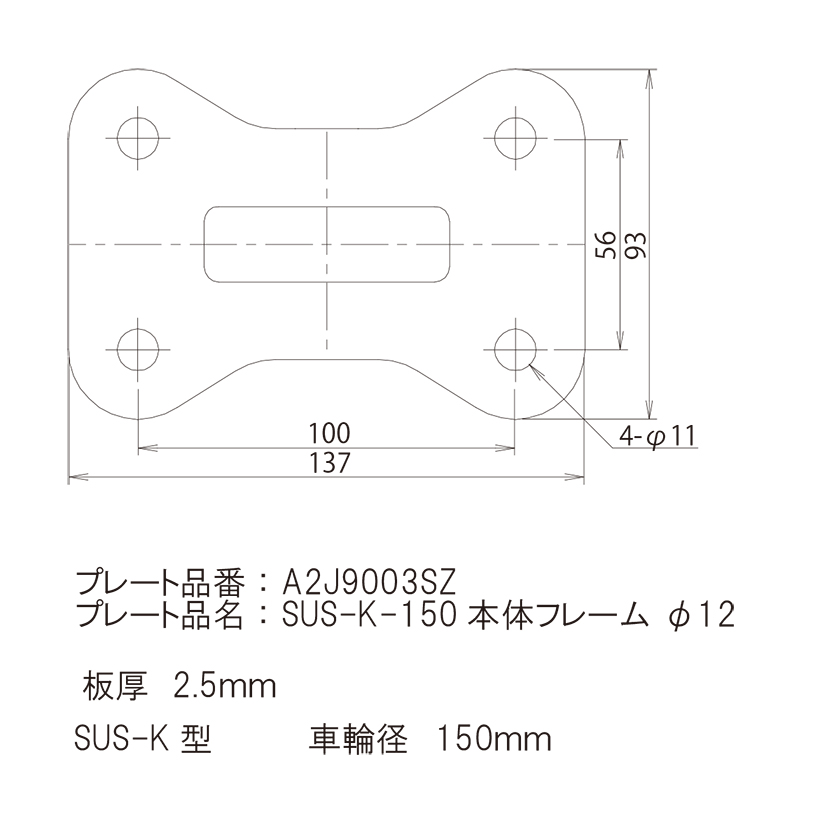

Mounting base(A×B[mm])？
 |
137×93 |
Mounting dimensions(X×Y[mm])？
 |
100×56 |
Hole Diameter(P[mm])？
 |
11 |
Allowance Load(daN／kgf)※？
 |
180/183.6 |
| Wheel Weight[g] | 1114 |
| Others1 | Stainless Steel |
| Quantity per Case | 10 |
| Usage | Hand carrier, For water supply system |
*Allowance load of one caster
Product catalog
Digital Catalog
Flyer
Other Resources
-
*The Picture is a typical product image.
You can download by click.
SUS-NK-150
-
You can download by click.
Nylon(including B)
-
Hand carrier, For water supply system
-
Plate Type
- Material of Wheel
- Usage
- Mounting Method
- Sub Picture 1
- Brand Logo

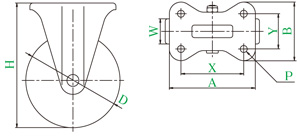

External dimensions
