LOCKSTAR ELOCK-75
- Product Specifications
- Download
- Product Catalog
| Product No. | ELOCK-75 |
|---|---|
| Product Code | 80007050 |
| Category | Leveling |
| JAN Code | 4589856900772 |
| Stock | in stock |
| Type of Bracket | ELOCK Type |
| Material of Metal Fittings | Steel Plain |
| Material of mounting plate | Steel Plain |
| Color of Metal Fittings | Silver |
| Color of mounting plate | Silver |
| Stopper | Without |
Mounting height(H[mm])？
 |
90 |
| Mounting Method | Plate Type |
Mounting base(A×B[mm])？
 |
105×135 |
Mounting dimensions(X×Y[mm])？
 |
67×103 |
Hole Diameter(P[mm])？
 |
10.5 |
| Wheel Weight[g] | 530 |
| Others1 | Pad adjuster Diameter(D［mm］) 60 |
| Others2 | Height(Locking)(H1［mm］) 95 Height(Unlocking)(H2［mm］) 80 Stroke(S［mm］) 15 |
| Others3 | Length of pedal(L1［mm］) 93 Length from the edge of mounting plate(L2［mm］) 53 Gap from mounting plate［mm］-1.25 |
| Quantity per Case | 15 |
*Allowance load of one caster
Product catalog
Digital Catalog
Flyer
Other Resources
-
*The Picture is a typical product image.
You can download by click.
ELOCK-75
-
Plate Type
- Mounting Method
- Brand Logo

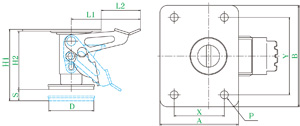

External dimensions
Wheel SpecificationIcon Description
Plate Type
