HEAVYSTAR AWJ-250

Product Specifications
Download
Product Catalog

Product No.	AWJ-250
Product Code	11302
Category	For Heavy Duty
JAN Code	4580322263285
Stock	job order production
Swivel Caster/Fixed Caster	Swivel Caster
Wheel Type	AW
Product Number of Wheel	AW-250
Type of Bracket	J Type
Material of Metal Fittings	Steel Plain
Material of mounting plate	Steel Plain
Color of Metal Fittings	Silver
Color of mounting plate	Silver
Body Coating	BZP(Brilliant Zinc Plating)
Body Bearing	Double Bearing
Stopper	Without
Material of Wheel	Rubber(including B)
Material of Foil	Aluminum
Color of Wheel	Black
Foil Bearing	Radial Bearing
Wheel diameter(D[mm])？	Φ250
Wheel Width(W[mm])？	60
Boss Width[mm]？	90
Wheel hole diameter[mm]？	20
Mounting height(H[mm])？	305
Mounting Method	Plate Type

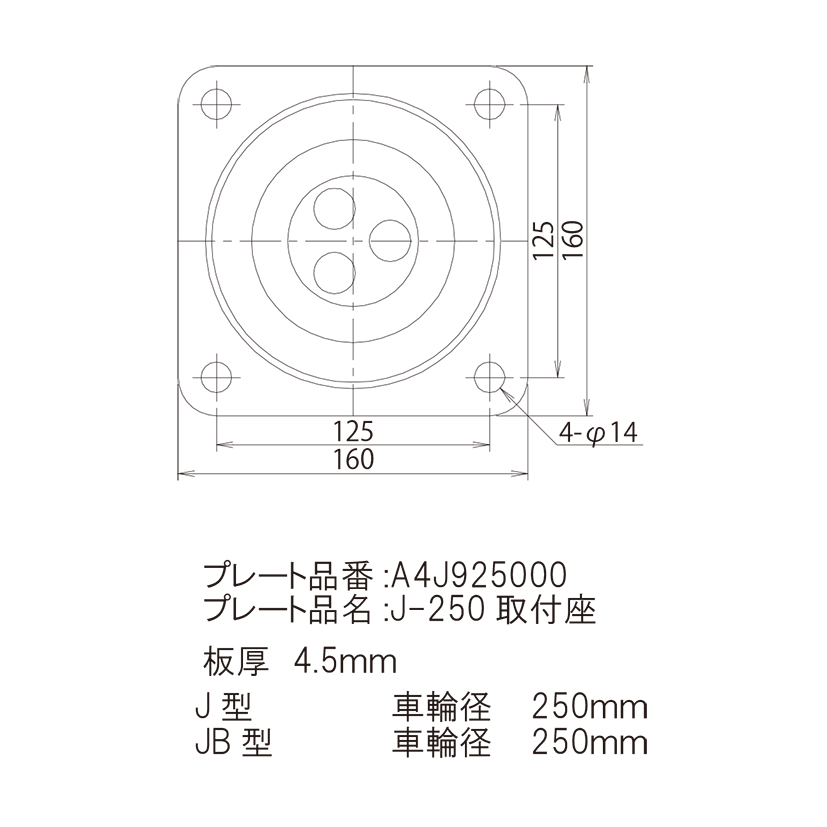

Mounting base(A×B[mm])？	160×160
Mounting dimensions(X×Y[mm])？	125×125
Hole Diameter(P[mm])？	14
Eccentricity(E[mm])？	70
Turning Radius(R[mm])？	195
Allowance Load(daN／kgf)^※？	400/408
Wheel Weight[g]	7660
Quantity per Case	2
Usage	Hand carrier, Machinery and equipment

*Allowance load of one caster
