LIGHTSTAR MG-65N

Product Specifications
Download
Product Catalog

Product No.	MG-65N
Product Code	31106300
Category	For Medium Duty
JAN Code	4562182577795
Stock	job order production
Swivel Caster/Fixed Caster	Swivel Caster
Wheel Type	N
Product Number of Wheel	M-65N
Type of Bracket	MG Type
Material of Metal Fittings	Steel Plain
Material of mounting plate	Steel Plain
Color of Metal Fittings	Silver
Color of mounting plate	Silver
Body Coating	BZP(Brilliant Zinc Plating)
Body Bearing	Single Bearing
Stopper	Without
Material of Wheel	Nylon
Material of Foil	Nylon
Color of Wheel	White

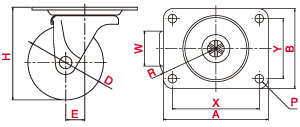

Wheel diameter(D[mm])？	Φ65
Wheel Width(W[mm])？	28
Boss Width[mm]？	35
Wheel hole diameter[mm]？	8.2
Mounting height(H[mm])？	82
Mounting Method	Plate Type

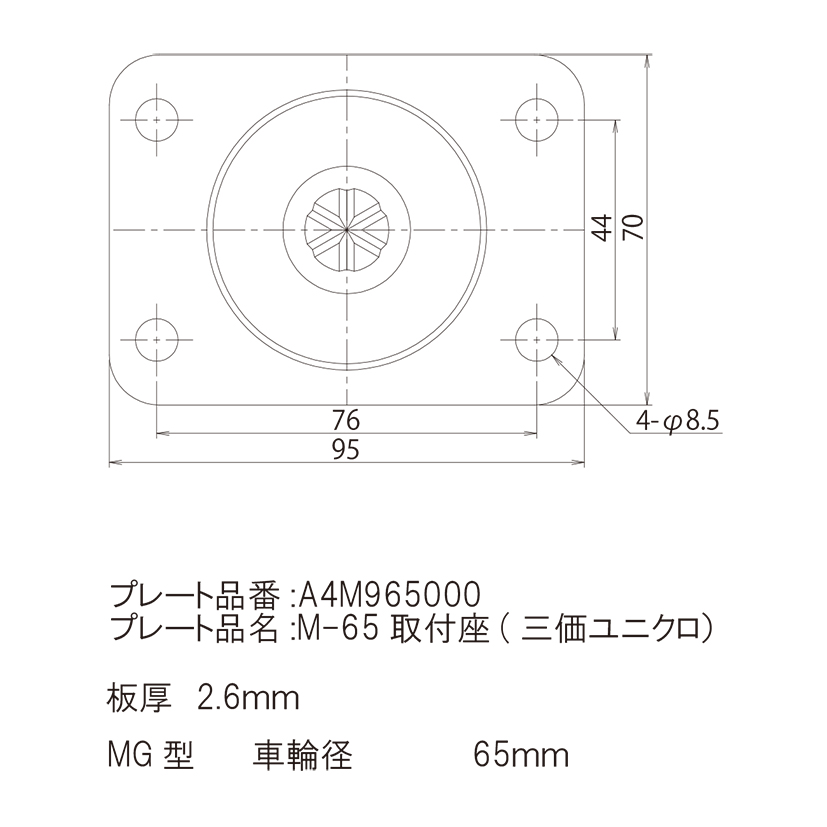

Mounting base(A×B[mm])？	95×70
Mounting dimensions(X×Y[mm])？	76×44
Hole Diameter(P[mm])？	8.5
Eccentricity(E[mm])？	22
Turning Radius(R[mm])？	55
Allowance Load(daN／kgf)^※？	90/91.8
Wheel Weight[g]	380
Quantity per Case	30
Usage	Machinery and equipment

*Allowance load of one caster
