STEP 1Select an application

STEP 2Calculate the allowable load of one piece of caster.

Self-weight of set equipmentkg

＋

The maximum loading capacitykg

4

×1.25

Allowable load of one piece of caster00(daN)

※It’s only applied to the case when using 4 pieces of casters. If there are more than 4 pieces of caster, please contact us.

LOCKSTAR 平行キャスター

  • Product Specifications
  • Download
  • Product Catalog
Product No. 平行キャスター
Product Code 00051
Category For Low Profile
JAN Code 4562182570284
Stock in stock
Swivel Caster/Fixed Caster Swivel Caster
Type of Bracket Special
Material of Metal Fittings Resin
Color of Metal Fittings Black
Body Bearing Double Bearing
Stopper Without
Material of Wheel Nylon
Material of Foil Nylon
Color of Wheel Black
Wheel diameter(D[mm])？
Φ18
Wheel Width(W[mm])？
20
Boss Width[mm]？
21.5
Wheel hole diameter[mm]？
5
Mounting height(H[mm])？
11.5
Mounting Method Angle Type
Eccentricity(E[mm])？
11.7
Allowance Load(daN／kgf)※？
30/30.6
Wheel Weight[g] 55
Others1 Parallel caster
Quantity per Case 200
Usage Furniture

*Allowance load of one caster

Download Drawing

Registration as a member of our company is necessary.

If you are a registered member please login by click "Login".
If you are not a registered member, please click the "Registration" to go to the new member registration page.

Product catalog

  • Digital Catalog
  • PDF format

Flyer

Other Resources

  • *The Picture is a typical product image.
    You can download by click.

    Product Image

    平行キャスター

  • Usage

    Furniture

  • Mounting Method

    Angle Type

  • Usage使用例

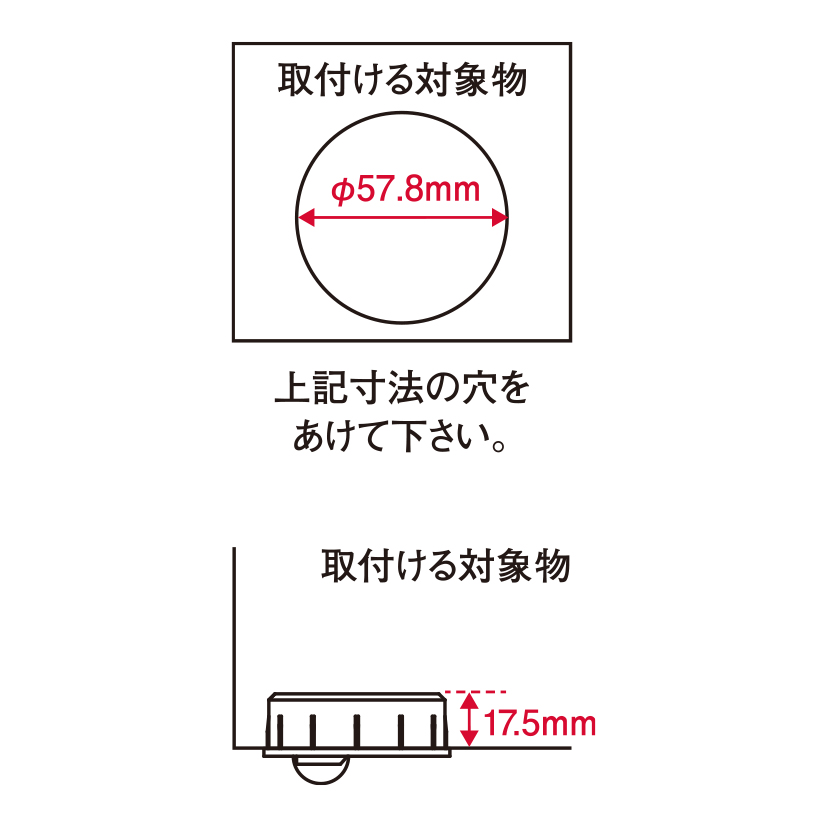

  • Mounting Method取付方法
  • Brand Logoブランドロゴ

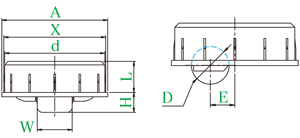

External dimensions

External dimensions

Wheel SpecificationIcon Description

  • Swivel CasterSwivel Caster
  • Double bearingDouble Bearing
