SHORTSTAR HGL-32GNB

Product Specifications
Download
Product Catalog

Product No.	HGL-32GNB
Product Code	A9400
Category	For Low Profile Heavy Duty
JAN Code	4580322262158
Stock	in stock
Swivel Caster/Fixed Caster	Swivel Caster

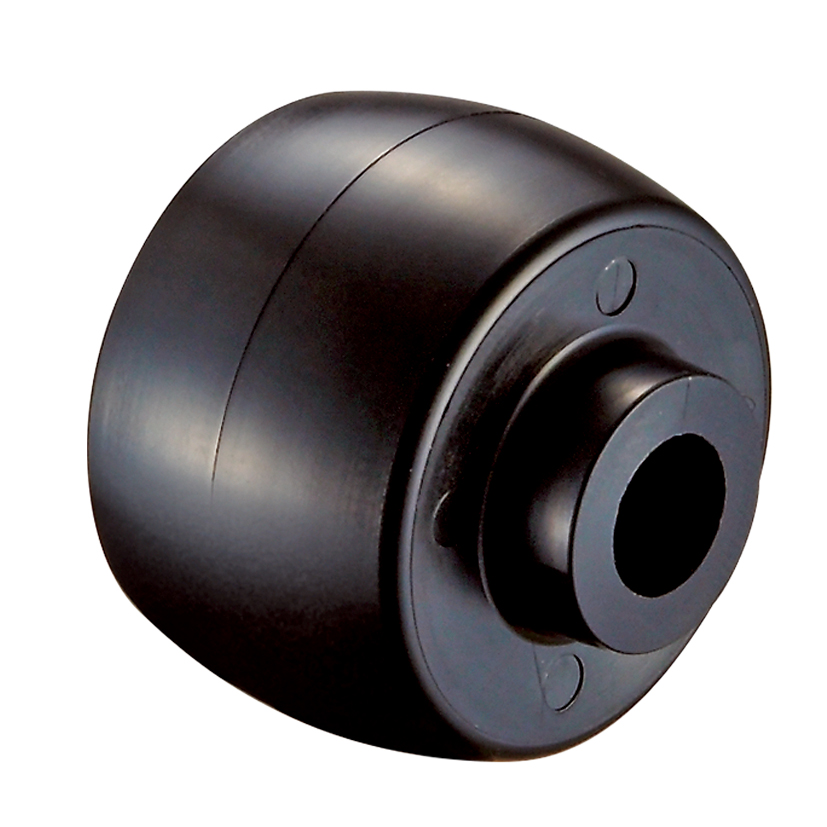

Wheel Type	GNB
Product Number of Wheel	HL-32GNB
Type of Bracket	HGL Type
Material of Metal Fittings	Steel Plain
Material of mounting plate	Steel Plain
Color of Metal Fittings	Silver
Color of mounting plate	Silver
Body Coating	BZP(Brilliant Zinc Plating)
Body Bearing	Double Bearing
Stopper	Without
Material of Wheel	Reinforced Nylon
Material of Foil	Reinforced Nylon
Color of Wheel	Black

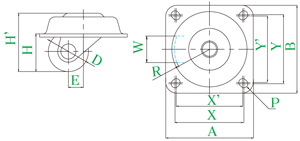

Wheel diameter(D[mm])？	Φ32
Wheel Width(W[mm])？	21
Boss Width[mm]？	31
Wheel hole diameter[mm]？	8.2
Mounting height(H[mm])？	30
Mounting Method	Plate Type

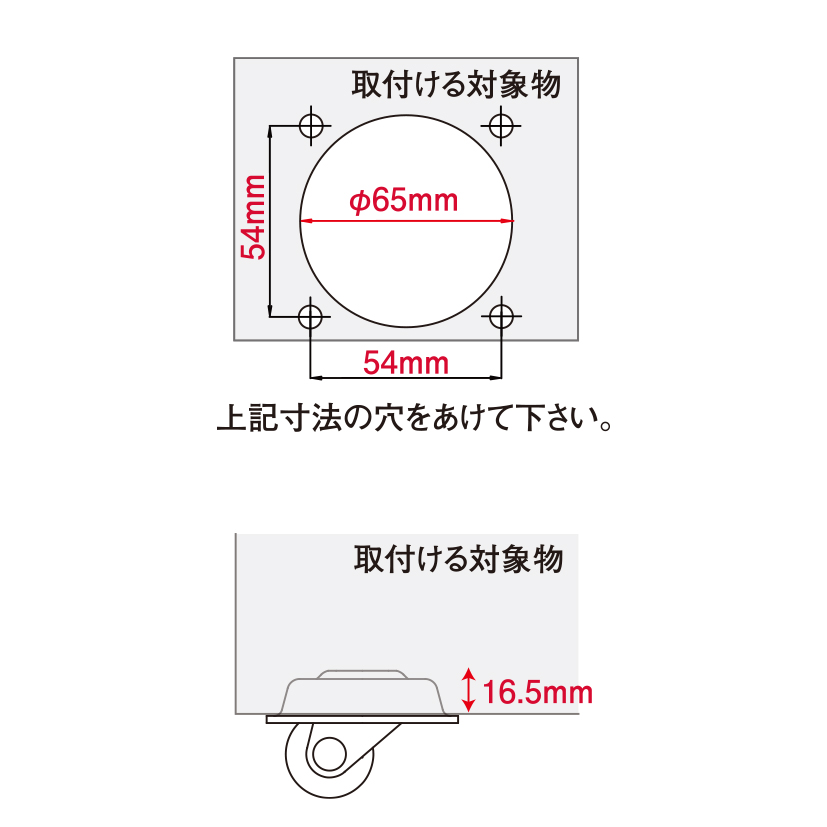

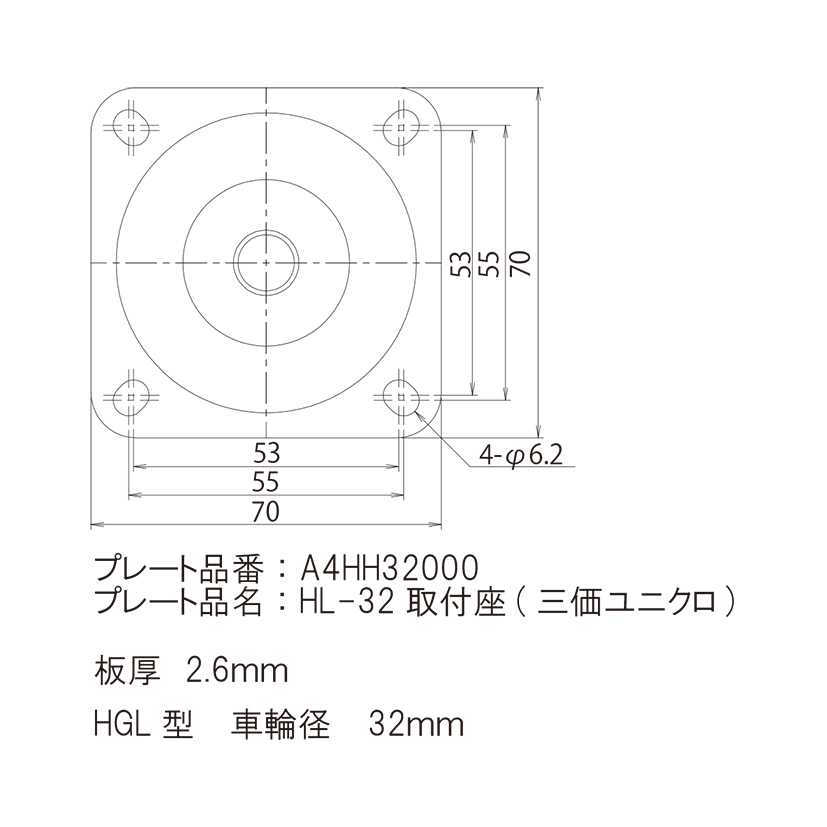

Mounting base(A×B[mm])？	70×70
Mounting dimensions(X×Y[mm])？	55×55(53×53)
Hole Diameter(P[mm])？	6.2
Eccentricity(E[mm])？	12
Turning Radius(R[mm])？	29
Allowance Load(daN／kgf)^※？	120/122.4
Wheel Weight[g]	220
Others1	Low floor, heavy load
Quantity per Case	40
Usage	Machinery and equipment, Refrigeration and cold storate showcase

*Allowance load of one caster
