STAINLESTAR SUS-SJ-100PHS

Product Specifications
Download
Product Catalog

Product No.	SUS-SJ-100PHS
Product Code	E2015
Category	Stainless Steel
Stock	make to order
Swivel Caster/Fixed Caster	Swivel Caster
Wheel Type	PH
Product Number of Wheel	SUS-PH-100
Type of Bracket	SUS-SJ-S Type
Material of Metal Fittings	Stainless
Material of mounting plate	Stainless
Color of Metal Fittings	Silver
Color of mounting plate	Silver
Body Bearing	Double Bearing
Stopper	Single Stopper
Material of Wheel	Phenol
Material of Foil	Phenol
Color of Wheel	Black

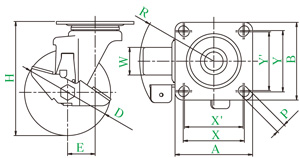

Wheel diameter(D[mm])？	Φ100
Wheel Width(W[mm])？	32
Boss Width[mm]？	42
Wheel hole diameter[mm]？	12.2
Mounting height(H[mm])？	132
Mounting Method	Plate Type
Mounting base(A×B[mm])？	90×90
Mounting dimensions(X×Y[mm])？	71×71(68×68)
Hole Diameter(P[mm])？	11
Eccentricity(E[mm])？	32
Turning Radius(R[mm])？	86
Allowance Load(daN／kgf)^※？	100/102
Wheel Weight[g]	983
Quantity per Case	20

*Allowance load of one caster
