HEAVYSTAR PMS-100AUULB(L)

Product Specifications
Download
Product Catalog

Product No.	PMS-100AUULB(L)
Product Code	M6030
Category	Medium&Heavy Duty
Stock	make to order
Swivel Caster/Fixed Caster	Swivel Caster
Wheel Type	AUU
Product Number of Wheel	PM-100AUU
Type of Bracket	PMS-LB(R) Type
Material of Metal Fittings	Steel Plain
Material of mounting plate	Steel Plain
Color of Metal Fittings	Silver
Color of mounting plate	Silver
Body Coating	BZP(Brilliant Zinc Plating)
Body Bearing	Double Bearing
Stopper	Level Type Double Stopper
Stopper Lever(R/L)	L
Material of Wheel	PU(including B)
Material of Foil	Aluminum
Color of Wheel	Blue
Foil Bearing	Radial Bearing

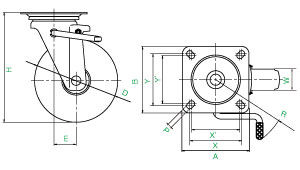

Wheel diameter(D[mm])？	Φ100
Wheel Width(W[mm])？	32
Boss Width[mm]？	43
Wheel hole diameter[mm]？	12
Mounting height(H[mm])？	144
Mounting Method	Plate Type
Mounting base(A×B[mm])？	95×95
Mounting dimensions(X×Y[mm])？	74×74(67×67)
Hole Diameter(P[mm])？	11
Eccentricity(E[mm])？	32
Turning Radius(R[mm])？	112
Allowance Load(daN／kgf)^※？	250/255
Wheel Weight[g]	2351
Quantity per Case	20

*Allowance load of one caster
