HEAVYSTAR SJ-100WS-P

Product Specifications
Download
Product Catalog

Product No.	SJ-100WS-P
Product Code	32003
Category	For Medium Duty
JAN Code	4562182573902
Stock	in stock
Swivel Caster/Fixed Caster	Swivel Caster

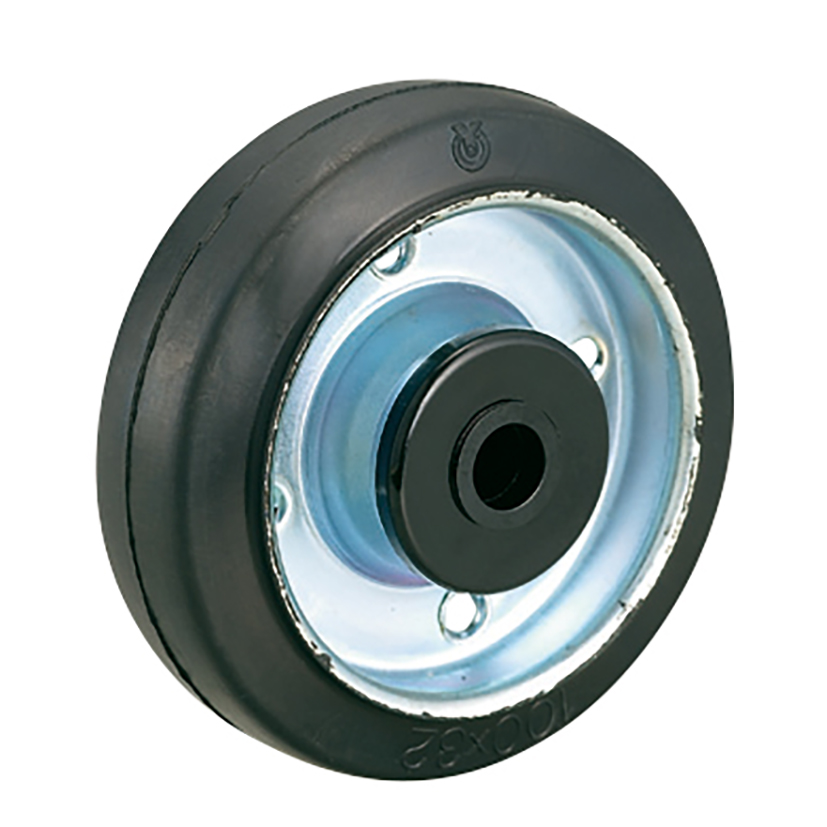

Wheel Type	W-P
Product Number of Wheel	W-P-100
Type of Bracket	SJ-S Type
Material of Metal Fittings	Steel Plain
Material of mounting plate	Steel Plain
Color of Metal Fittings	Silver
Color of mounting plate	Silver
Body Coating	BZP(Brilliant Zinc Plating)
Body Bearing	Double Bearing
Stopper	Single Stopper
Material of Wheel	Rubber
Material of Foil	Steel
Color of Wheel	Black

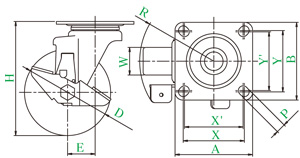

Wheel diameter(D[mm])？	Φ100
Wheel Width(W[mm])？	32
Boss Width[mm]？	42
Wheel hole diameter[mm]？	12.2
Mounting height(H[mm])？	132
Mounting Method	Plate Type

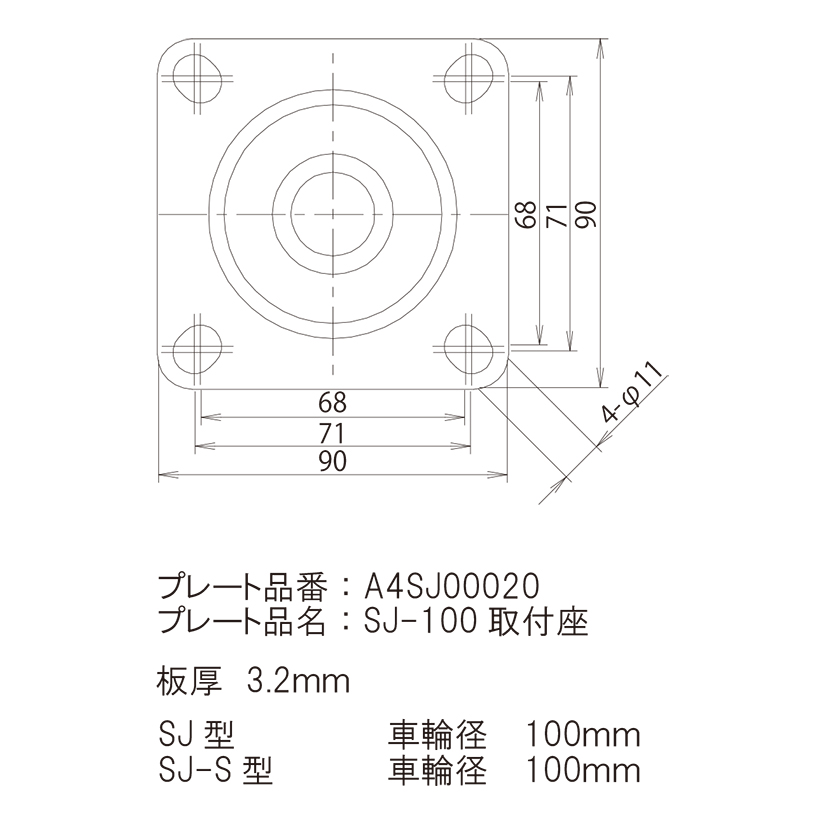

Mounting base(A×B[mm])？	90×90
Mounting dimensions(X×Y[mm])？	71×71(68×68)
Hole Diameter(P[mm])？	11
Eccentricity(E[mm])？	32
Turning Radius(R[mm])？	86
Allowance Load(daN／kgf)^※？	120/122.4
Wheel Weight[g]	1006
Quantity per Case	20
Usage	Hand carrier, Flat carrier

*Allowance load of one caster
